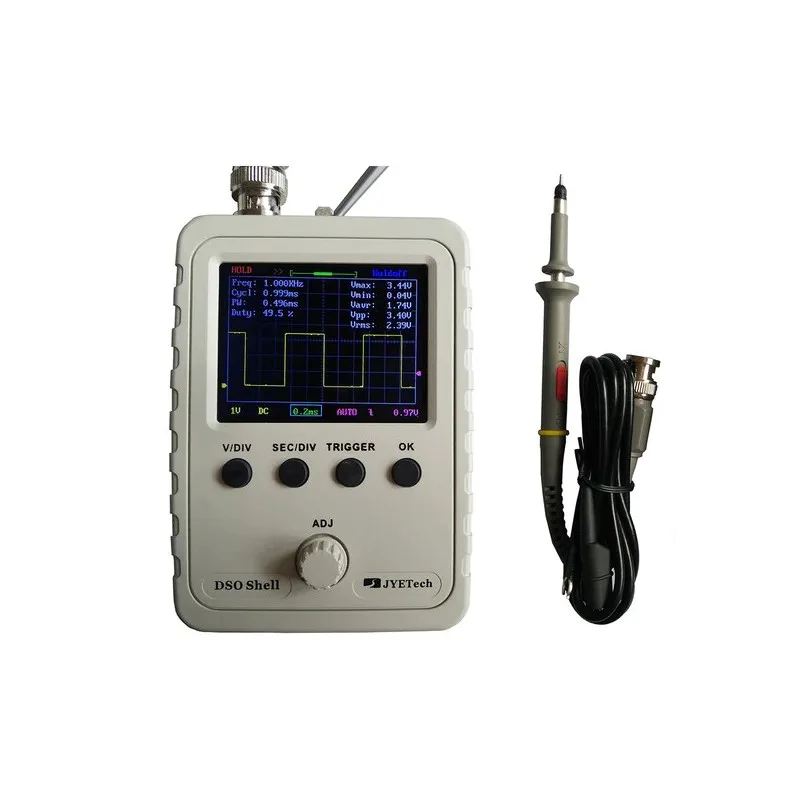

DSO150 Mini Oscilloscope 150KHz – Assembled

Specifications

• Maximum Real-time Sampling Rate: 1MSa/s
• Analog Bandwidth: 0-200KHz
• Sensitivity Range: 5mV/div-20mV/idv
• Maximum Input Voltage: 50Vpk (1X probe)
• Input Impedance: 1M ohms/20pF
• Accuracy: 12 Bits
• Record Length: 1024 points
• Coupling Modes: DC / AC / GND
• Time Base Range: 500s/Div-10us / Div
• Trigger Modes: Auto, Normal, and Single
• Trigger Position: Center of Buffer
• Supply Voltage: DC 9V(8-10V)
• Current Consumption: ~120mA @ 9V
• Main Board Size: 94 * 65mm / 3.7 * 2.56in
• Analog Board Size: 65 * 47mm / 2.56 * 1.85in
• Screen Size: 52 * 40mm / 2 * 1.57in
