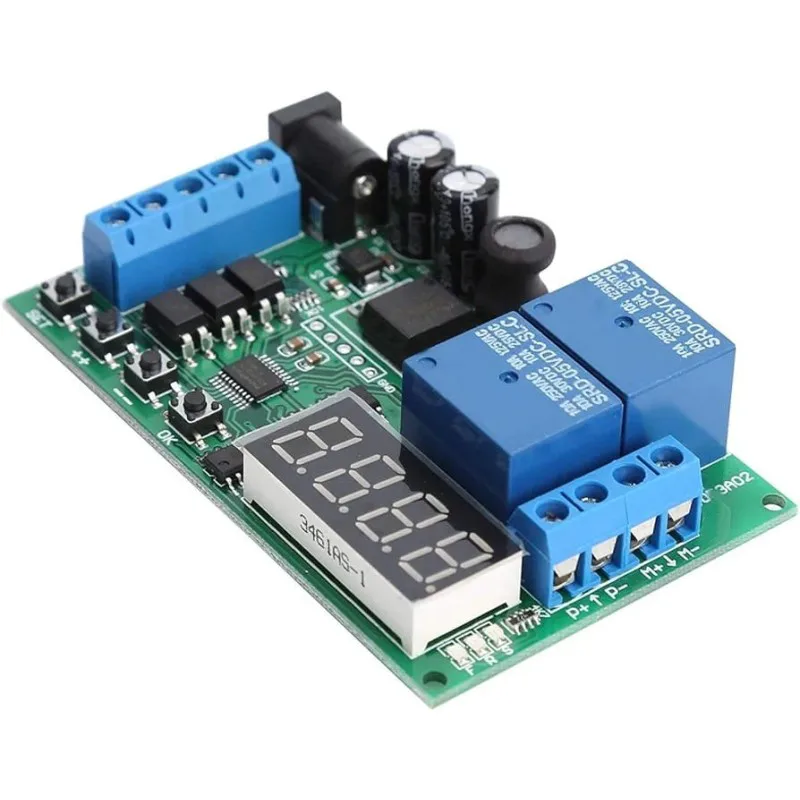

DC Motor Reversing Controller

Features:

• Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V
• Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA.
• There are three input control port: forward control(FWD), reverse control(), and stop control(STOP).
• Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode
• Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes.
• Cycle times: no cycle, 2-99 cycles, always cycle.
• Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED).
• Relay load current, recommended less than 5A.
• This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.

**Port:**DC 5.5MM female : Power supply 1, DC 5V power supply. VIN: Power 2 positive, DC 6.5-25V power supply GND: Power supply 2 negative FWD: Forward input control (partial Function-Mode is invalid) : Reverse input control (partial Function-Mode is invalid) STOP : Stop input control (partial Function-Mode is invalid) M+: Motor positive  M-: Motor negative P+: Positive terminal for motor power supplyP-: negative terminal for motor power supply

Specification:

Power supply: DC 6.5-25V, DC 5V

Working current: 83mA

Standby current: 41mA

Relay load current: <5A

Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes

Size: 8*5cm/3.2*2inWeight: Approx. 51g/1.8oz

Trigger mode:

1 low pulse trigger (falling edge trigger)

2 low level trigger (rising edge trigger)

Timer:

T1: Forward timer

T2: Reverse timer

T3: Stop timer

Time unit : 0.1 second, 1 second, 1 minute
