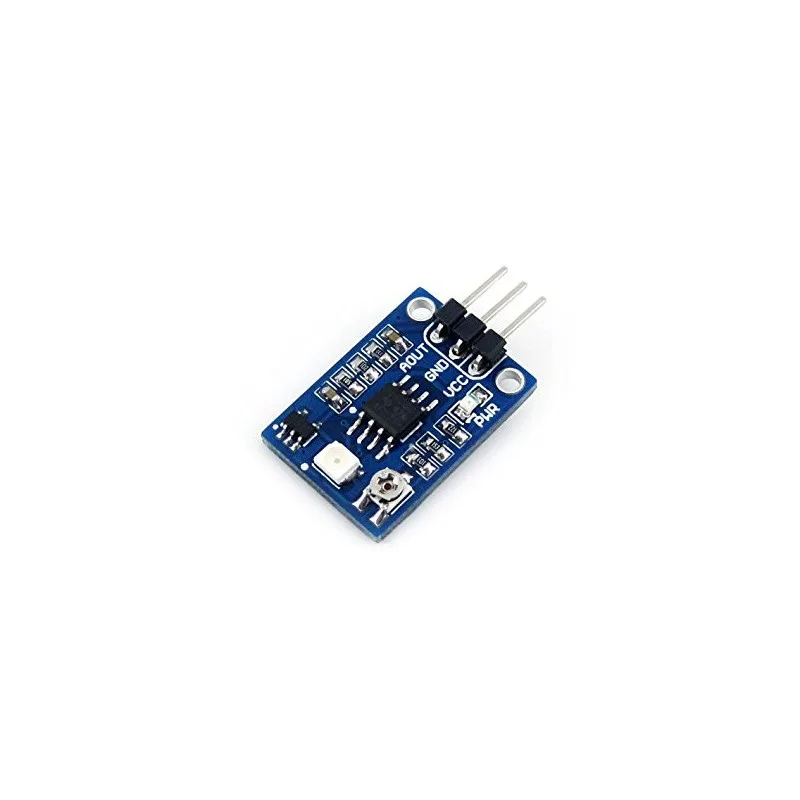

UV Sensor 200nm-370nm DC3.3-5V

This is a UV Detection Sensor Module that is used to detect the UV radiation emitted by the flame and is sensitive to a wide range of flammable fuels including hydrocarbons, sulphur, hydrazine, and ammonia. This module is suitable for measuring the total amount of solar ultraviolet light intensity. also, it has to Contrast the World Health Organization UV Index grading standards.

Specifications:

1.Operating voltage: DC 3.3-5V 2.Output voltage: DC 0-1V 3.Test accuracy: 1UV INDEX 4.Current: 0.06mA (type), 0.1mA (max) 5.Response wavelength: 200nm-370nm6. Response time: less than 0.5 seconds7.Work temperature: -20 ~85 8.Detect UV wavelength: 200-370nm 9.Size:19.80 x 15mm
