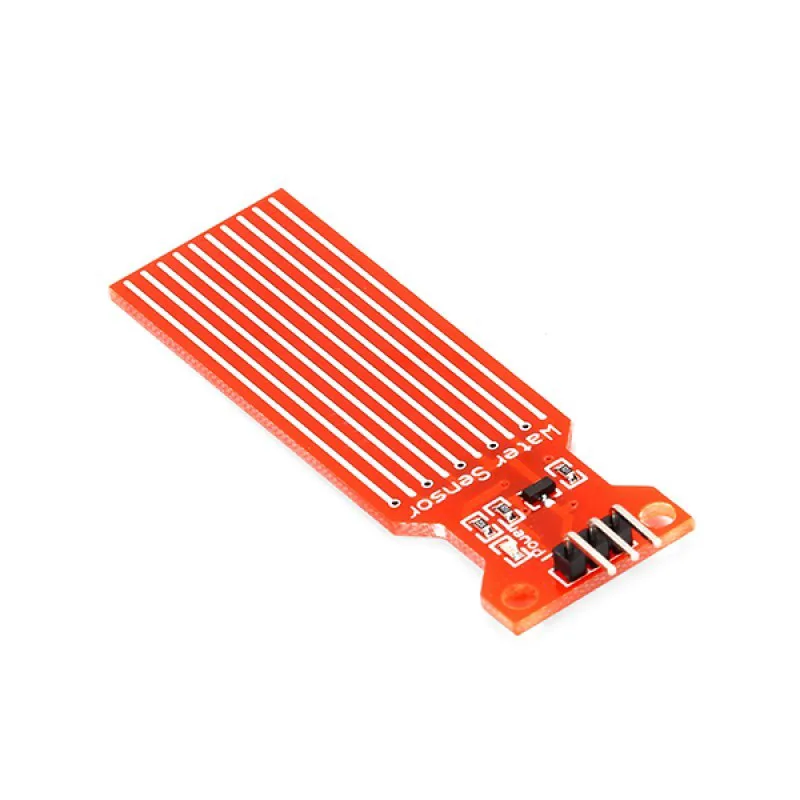

Water Level Sensor

Specifications

• Operating Voltage: 3 VDC to 5 VDC
• Operating Current: <20mA
• Detection area: 40 mm x 16 mm
• Operating Temperature: 10oC to 30oC
• Humidity: 10% to 90%
• Size: 62 x 20 x 8 mm

The sensor can be used to detect the water level over a distance of 40 mm. It is of very good efficiency and has a very low consumption.

The output is analogous, giving a voltage depending on the water level. The sensor can be used with microcontrollers and development placards, such as Arduino.
