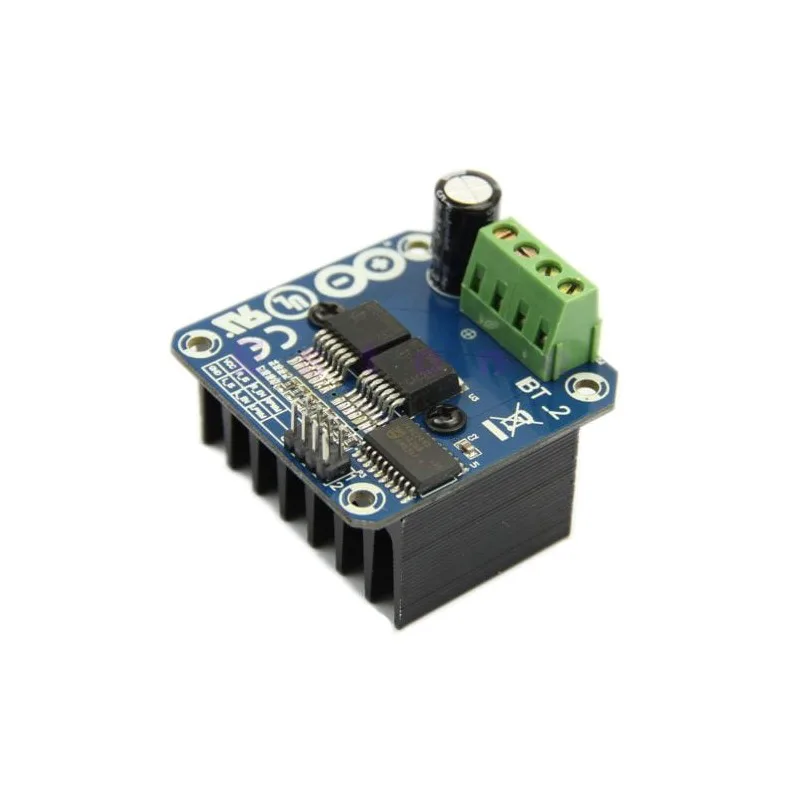

BTS7960 43 A DC Motor Driver

Overview

This motor driver is based on BTS7960 which is ideal for driving powerful engines and capable of delivering currents up to 43 A.

This engine uses half bridge driver power NP and features a BTS7960 integrated circuit for control. The 74HC244 circuit provides protection for microcontroller used. It can be used for various applications that can withstand such intensity.

Specifications

• Input Voltage: 6 V to 27 V
• Current: 43 A (max)
• Maximum PWM Frequency: 25 kHz
• Protection: short circuit, over-voltage, under-voltage, overtemperature
• Logic Voltage: 3.3 V to 5 V
