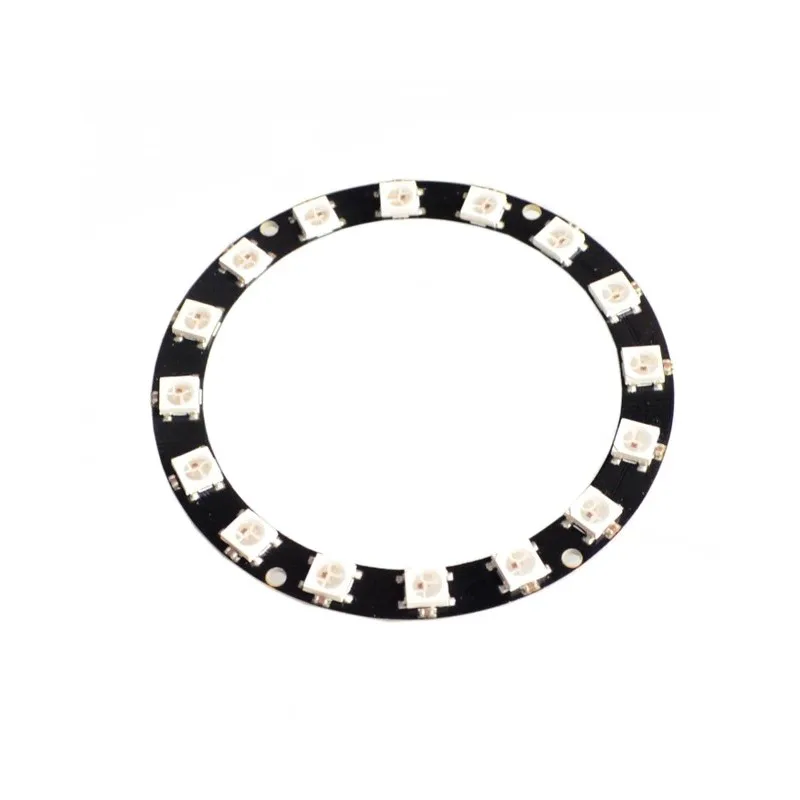

RGB LED Ring 16 WS2812

SKU: GHN-4501

3.25 JOD

Description

This WS2812 LED Ring contains 16 addressable 5050 RGB LEDs and can be programmed from the microcontroller. The LED ring can be used in your decorative designs. It can provide high-power illumination required in machine vision, biomedical, fluorescence, and strobing applications.

It only needs 3 connections for 16 LEDs (VCC, GND, and D – data pin). Data for LEDs is sent in serial, 24 bit for each LED, representing 8 bit for colors, in the order of GRB.

Specifications

  • Supply voltage:5 V (VCC and VDD)
  • Current consumed by LEDs: max 20mA / LED
  • LED Voltage Drop: R: 1.8 V to 2.2 V, G: 3.0 V to 3.2 V, B: 3.2 V to 3.4 V
  • LED Brightness: R: 550 to 700 mcd, G: 1100 to 1400 mcd, B: 200 to 400 mcd
  • 8-bit resolution / color
  • Data transmission speed of up to 800Kbps
In stock — ships within 24 hours
